I.7. Simulation Panel

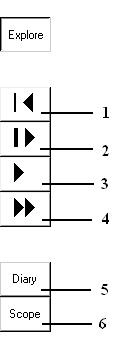

The Simulation Panel is placed vertically, in the left side of the main window, just below the Drawing Panel. It presents four image buttons with actions identical to the commands Reset (1), Step (2), Run Slow (3) and Run Fast (4) available in the Simulation menu. It also provides two visualization instruments for observing the progress of the simulation: Diary (5) and Scope (6) (see section Running a Simulation).
